SEC TL - Syscon Electric Carrier TrackLess
Trackless Electric Carrier - Driving on Floor with A.C / D.C
Heavy-duty reinforcement for transporting heavy loads at once!
SEC TL is a trackless electric carrier which is capable of safely transporting heavy loads to the desired destination. Moreover, It features smooth driving and steering, equipped with powerful hydraulic drum brakes for excellent braking performance. Furthermore, It guarantees safety operation with front and rear direction photo sensors (distance detection devices), safety bumpers (touch-stop), and functions of warning lights and melodies.
All four sides of the robot are shielded with protective covers, facilitating easy repairs in case of malfunctions. The battery-powered drive system ensures better working environment with a noise-free and emission-free.
| PayLoad (Capacity) | 10 Ton | 20 Ton | 30 Ton | 40 Ton | 50 Ton | 70 Ton | 100 Ton |
|---|---|---|---|---|---|---|---|
| Size (W/L mm) | 2,000~4,000/ 2,000~12,000 (Made a scandal to fit the purpose) | ||||||
| Height(mm) | 600~1,400 (Custom designed and manufactured to suit capacity and purpose) | ||||||
| Speed (M/min) | 15~30 | ||||||
| Driving motor | D.C MOTOR or low voltage A.C MOTOR | ||||||
| Operation S/W | PENDANT S/W (HOIST BUTTON) and wireless remote control S/W | ||||||
| Driving Type (2wheel/4wheel) | Generally, front-wheel steering and rear-wheel driving are adopted, but when the passage is narrow or the turning radius is small, four-wheel driving is adopted. | ||||||
* Generally, front-wheel steering and rear-wheel driving are adopted, but when the passage is narrow or the turning radius is small, four-wheel driving is adopted.
SEC Tt - Syscon Electric Carrier Track type
Electric transport truck – rail-running AC electric type. DC electric type
Transport heavy loads at once with reinforced weight!
It is suitable for short distance transportation due to space limitations or for transportation within factories that cannot be moved by crane. It is suitable for transporting various heavy products such as automobile press mold transfer, steel mill cast steel products, raw materials, and semi-finished products. It has smooth driving and steering, and is equipped with powerful hydraulic drum brakes for excellent braking power. Equipped with forward and reverse direction photo sensors (close-range detection device) and safety bumper (touch stop), warning lights and melody operation ensure safe driving.
POWER SOURCE is available in either battery-electric or A.C.-electric (connected for use with AUTO REEL, etc.). Selectable to suit your work environment.
All specifications are made to order to suit the working environment, including the size, weight, and transport distance of the transported object.
| PayLoad (Capacity) | 10 Ton | 20 Ton | 30 Ton | 50 Ton | 100 Ton | 200 Ton | 300 Ton |
|---|---|---|---|---|---|---|---|
| Bogie size (W*L mm) | 1,800*2,500 | 1,800*3,000 | 2,000*3,500 | 2,200*4,000 | 2,500*4,500 | 2,800*5,000 | 3,000*6,000 |
| Bogie height Height (mm) | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 |
| Driving speed | 25M shift possible | 20M shift possible | |||||

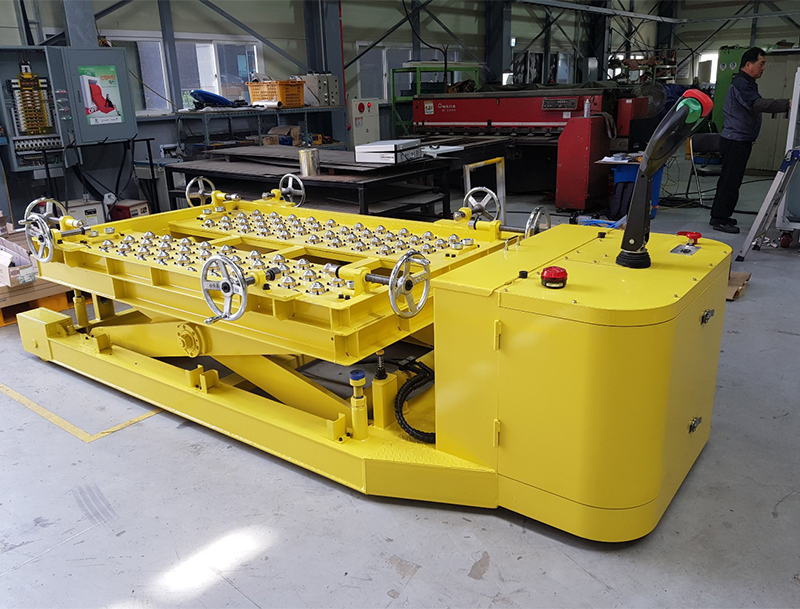

HBT series
Trackless electric transport truck – floor running A.C/D.C electric type
Anyone can easily move and operate heavy-load products or equipment by electric means. Soft start & stop and speed control make starting and stopping safe and smooth. The operator can operate it while walking (walking type) or by riding on a folding footrest. The convenience of work can be increased by installing a roller or jig device on the top of the table, and a table lifting function can be added by applying a scissors device to the bottom of the table.
| Model | HBT-1000 | HBT-2000 | HBT-3000 | HBT-5000 | |||
|---|---|---|---|---|---|---|---|
| PayLoad (kg) | 1,000 | 2,000 | 3,000 | 5,000 | |||
| Speed km/h | 1~3 | ||||||
| Size (W/L mm) | 900~1,200 | 1,000~1,500 | 1,200~1,800 | 1,500~2,000 | |||
| Driving motor | 12V X 750W | 24V X 900W | 24V X 1200W | 24V X 1500W | |||
HFL series
Maximum efficiency in narrow spaces!
| MODEL (Capacity) | HFL-5M | HFL-10M | HFL-5E | HFL-10E | HFL-10EH | HFL-10EHW | HFL-5EEW |
|---|---|---|---|---|---|---|---|
| PayLoad (Kg) | 500 | 1,800 | 500 | 1,000 | 1,000 | 1,000 | 1,000 |
| Fork lift height Height (mm) | 1,500 | 1,500 | 1,500 | 1,500 | 2,500 | 2,500 | 2,500 |
| Fork lift height Height (mm) | 900 | 900 | 700 | 700 | 700 | 900 | 1,070 |
| Full height Height (mm) | 1,950 | 1,950 | 1,960 | 2,030 | 2,030 | 2,030 | 2,100 |
| Overall outer width Height (mm) | 800 | 865 | 770 | 770 | 770 | 1,400 | 750 |
| Total length Height (mm) | 1,300 | 1,400 | 1,200 | 1,360 | 1,360 | 1,560 | 1,800 |
| Leg inner width Height (mm) | 500 | 500 | 600 | 600 | 600 | 1,250(adjustable) | 600 |
| Up and down operation | hydraulic manual | hydraulic manual | hydraulic electric | hydraulic electric | hydraulic electric | hydraulic electric | hydraulic electric |
| Fork adjustable external width(mm) | MIN' 220~ MAX' 700 | ||||||
| Battery charger(mm) | Single phase 220V | ||||||

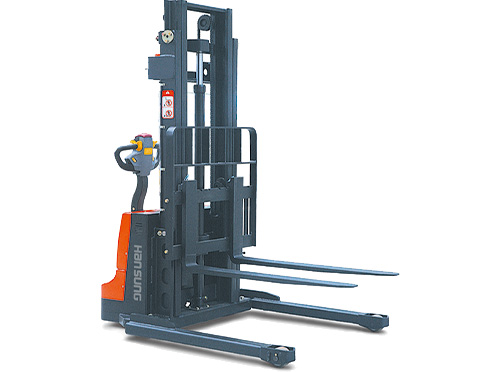

HDS series
A practical and powerful self-propelled stacker!
| Model | HDS-10EH |
|---|---|
| Working load Load CAPA (Kg) | 1,000 |
| Fork maximum lift height (mm) | 2,500 |
| Overall length (full length) (mm) | 1,740 |
| Overall Width (Full External Width) (mm) | 1,150 |
| Total height (overall height) (mm) | 1,860 |
| Fork adjustable external width (mm) | 200~800 |
| Leg inner width (adjustable) (mm) | 950~1,250 |
| Front wheel (front wheel, load wheel) (mm) | Φ100 * 60 W (Wooritan Wheel) |
| Rear wheel (driving wheel) (mm) | Φ200 * 70 W (Wooritan Wheel) |
| Motor drive | 24 V * 400 W |
| Motor hydraulic | DC 24 V * 1.5 KW |
| Driving speed(Full load/No load)(Km/hr) | 3~4 / 4~5 |
| Battery/charger (built-in) | 24 V 85 Ah / Single phase 220 V 60 Hz | Dead weight(Kg) | 540 |

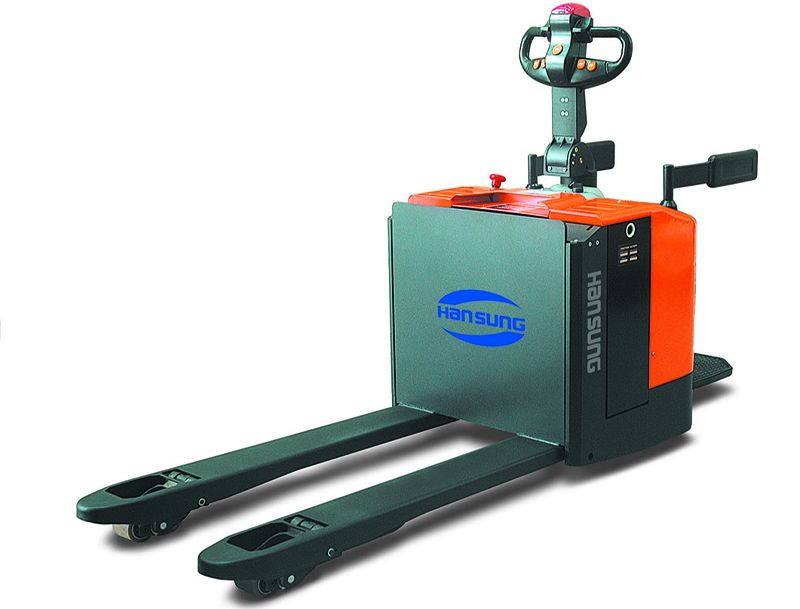

HBP series
Smart rigid frame! Powerful and smooth driving ability
| MODEL (Capacity) | HPB-1500 | HPB-2000 | HPB-2500 | HPB-3000 |
|---|---|---|---|---|
| Working load (Kg) | 1,500 | 2,500 | 3000 | |
| Fork specifications W *L (mm) | 160 * 1,150 | 160 * 1,200 | 185 * 1,200 | 185 * 1,200 |
| Fork outer width (mm) | 550 | 685 | 685 | 685 |
| Fork minimum height (mm) | 85 | 85 | 85 | 85 |
| Fork maximum height (mm) | 200 | 205 | 205 | 205 |
| Total length (mm) | 1,600 | 1,750 | 1,916 | 1,916 |
| Running speed (km/hr) | 3~4 | 3~5 | 3~5 | 3~5 |
| Battery | 24V * 80 Ah | 24V * 210 Ah | 24V * 210 Ah | 24V * 280 Ah |
| Driving motor | DC 24V * 0.65 kw | AC 24V * 1.5 kw | AC 24V * 1.5 kw | AC 24V * 1.5 kw |
| Lifting hydraulic motor | 24V * 0.8 kw | DC 24V * 2.0 kw | DC 24V * 2.0 kw | DC 24V * 2.0 kw |
| Rechargeable battery | phase 220V | phase 220V | phase 220V | phase 220V |
| Dead weight (kg) | 225 | 610 | 790 | 842 |
| Option (kg) | _ | _ | Footrest and waist stand | |
HTL series
Manufactured with a lifting load of up to 100 tons!
It can be applied to various industrial fields such as height-adjustable work tables, table lifts for loading and unloading, and upper and lowering lifts. Efficient work is possible by installing JIG devices suitable for the purpose such as turntable devices, sliding devices, and conveyor lines on the top of the table.
* For any special specifications or specification decisions, please contact the Syscon sales team and we will provide you with an accurate solution.

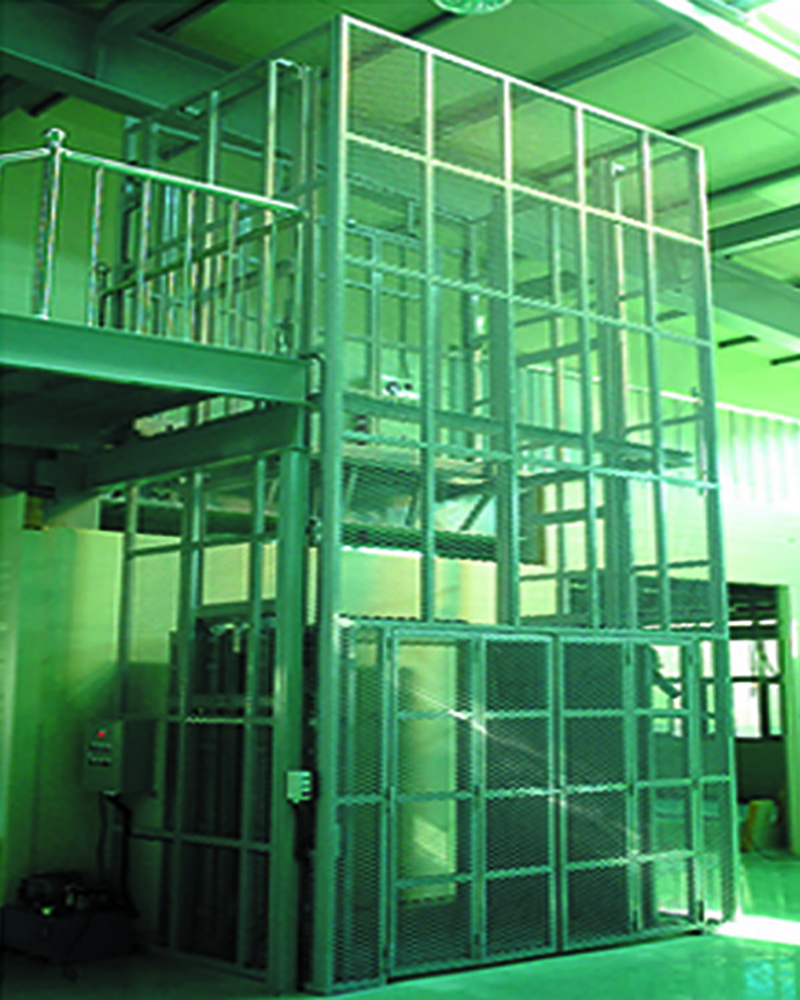

FL series
OP series
It is convenient to move in narrow spaces and allows people to easily work with goods on racks and warehouses. It is equipped with various safety devices such as overload prevention devices, constriction prevention devices when rising, and fall prevention devices, so the risk of disaster is low. .Simple structure, simple operation and low maintenance costs.
* For any special specifications or specification decisions, please contact the Syscon sales team and we will provide you with an accurate solution.
| MODEL | OP-2015 | OP-2035 | ||||||
|---|---|---|---|---|---|---|---|---|
| Load Capacity (kg) | 200 | 200 | ||||||
| Workbench lifting height (mm) | 1,500 | 3,500 | ||||||
| Platform size W * L (mm) | 550 * 600 (Custom designed and manufactured to suit capacity and purpose) | 730 * 870 (Custom designed and manufactured to suit capacity and purpose) | ||||||
| Workbench size W * L * H (mm) | 630 * 1,210 * 1,040 (Custom designed and manufactured to suit capacity and purpose) | 790 * 1,295 * 2,380 (Custom designed and manufactured to suit capacity and purpose) | ||||||
| Hydraulic motor, battery | 0.8 kw, 12V * 60Ah | 1.2 kw, 12V * 90Ah | ||||||
| Charger power | Single phase 220V | Single phase 220V | ||||||
| Own weight (kg) | 150 | 400 | ||||||
